ZF2000 Series

ZF2000A

Name: ZF2000A
Brand: ZF
SKU: ZF-2000A

Part Number: ZF-2000A

Quote Required: This product requires a custom quote. Contact us for pricing and availability.

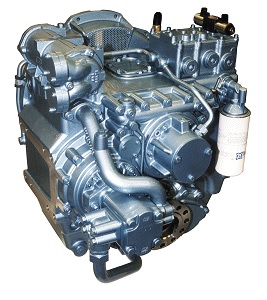

ZF2000A marine transmission by ZF Marine. Maximum input 1504 HP (1122 kW) at 2600 RPM. Available ratios 1.763, 2.029, 2.467, 2.920 (special order: 1.267, 1.512, 2.250, 2.714, 3.250). Rated for pleasure duty, light duty, medium duty and continuous duty service. ADR Power Systems supplies, installs, services and repairs ZF marine transmissions and stocks ZF parts.

Input Power:1504 HP (1122 kW)

View on ZF Website

Detailed Specifications

Transmission Specifications

Max Input Power:: 1504 HP (1122 kW)

Power Ratings

Duty	Ratios	hp/RPM	RPM	hp	RPM	hp	RPM	hp	Max hp	Max RPM
PD	1.267, 1.512, 1.763, 2.029, 2.250, 2.467, 2.714, 2.920	0.6142	2100	1290	2300	1413	2450	1504	1504	2600
PD	3.250*	0.4349	2100	913	2300	1000	2450	1064	1064	2600
LD	1.267, 1.512, 1.763, 2.029, 2.250, 2.467, 2.714, 2.920	0.5446	2100	1144	2300	1253	2450	1332	1332	2600
LD	3.250*	0.3924	2100	824	2300	903	2450	960	960	2600
MD	1.267, 1.512, 1.763, 2.029, 2.250, 2.467, 2.714	0.4305	1800	775	2100	904	2250	968	968	2600
MD	2.920	0.4120	1800	742	2100	865	2250	926	926	2600
MD	3.250*	0.3835	1800	690	2100	805	2250	862	862	2600
CD	1.267, 1.512, 1.763, 2.029, 2.250, 2.467, 2.714	0.3778	1600	604	1800	680	2100	793	793	2100
CD	2.920	0.3420	1600	547	1800	616	2100	718	718	2100
CD	3.250*	0.2899	1600	464	1800	522	2100	609	609	2100

PD = Pleasure Duty, LD = Light Duty, MD = Medium Duty, CD = Continuous Duty. * Special-order ratio. Ratings per ZF Marine technical data sheet of 2026-04-02.

Key Features

Maximum input power: 1504 HP (1122 kW) at 2600 RPM
Gear ratios: 1.763, 2.029, 2.467, 2.920
Special-order ratios: 1.267, 1.512, 2.250, 2.714, 3.250
Duty ratings: pleasure duty, light duty, medium duty, continuous duty

Documents

ZF2000A datasheet (PDF)
