ZF2000 Series

ZF2000

Name: ZF2000
Brand: ZF
SKU: ZF-2000

Part Number: ZF-2000

Quote Required: This product requires a custom quote. Contact us for pricing and availability.

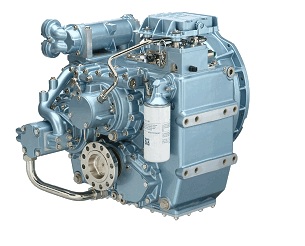

ZF2000 marine transmission by ZF Marine. Maximum input 1504 HP (1122 kW) at 2600 RPM. Available ratios 1.500, 2.032, 2.519, 2.958 (special order: 1.086, 1.111, 1.191, 1.250, 1.350, 1.436, 1.639, 1.765, 1.848, 1.879, 2.276, 2.760). Rated for pleasure duty, light duty, medium duty and continuous duty service. ADR Power Systems supplies, installs, services and repairs ZF marine transmissions and stocks ZF parts.

Input Power:1504 HP (1122 kW)

View on ZF Website

Detailed Specifications

Transmission Specifications

Max Input Power:: 1504 HP (1122 kW)

Power Ratings

Duty	Ratios	hp/RPM	RPM	hp	RPM	hp	RPM	hp	Max hp	Max RPM
PD	1.086, 1.111, 1.191, 1.250, 1.350, 1.436, 1.500, 1.639, 1.765, 1.848, 1.879, 2.032, 2.276, 2.519, 2.760, 2.958	0.6142	2100	1290	2300	1413	2450	1504	1504	2600
LD	1.086, 1.111, 1.191, 1.250, 1.350, 1.436, 1.500, 1.639, 1.765, 1.848, 1.879, 2.032, 2.276, 2.519, 2.760	0.5446	2100	1144	2300	1253	2450	1332	1332	2600
LD	2.958	0.5040	2100	1058	2300	1159	2450	1233	1233	2600
MD	1.086, 1.111, 1.191, 1.250, 1.350, 1.436, 1.500, 1.639, 1.765, 1.848, 1.879, 2.032, 2.276*, 2.519	0.4305	1800	775	2100	904	2250	968	968	2600
MD	2.760*	0.3960	1800	713	2100	832	2250	890	890	2600
MD	2.958	0.3618	1800	651	2100	760	2250	814	814	2600
CD	1.086, 1.111, 1.191, 1.250, 1.350, 1.436, 1.500, 1.639, 1.765, 1.848, 1.879, 2.032, 2.276*, 2.519	0.3778	1600	604	1800	680	2100	793	793	2100
CD	2.760*	0.3480	1600	557	1800	626	2100	731	731	2100
CD	2.958	0.3291	1600	527	1800	592	2100	691	691	2100

PD = Pleasure Duty, LD = Light Duty, MD = Medium Duty, CD = Continuous Duty. * Special-order ratio. Ratings per ZF Marine technical data sheet of 2026-04-02.

Key Features

Maximum input power: 1504 HP (1122 kW) at 2600 RPM
Gear ratios: 1.500, 2.032, 2.519, 2.958
Special-order ratios: 1.086, 1.111, 1.191, 1.250, 1.350, 1.436, 1.639, 1.765, 1.848, 1.879, 2.276, 2.760
Duty ratings: pleasure duty, light duty, medium duty, continuous duty

Documents

ZF2000 datasheet (PDF)
