ZF2000 Series

ZF2150A

Name: ZF2150A
Brand: ZF
SKU: ZF-2150A

Part Number: ZF-2150A

Quote Required: This product requires a custom quote. Contact us for pricing and availability.

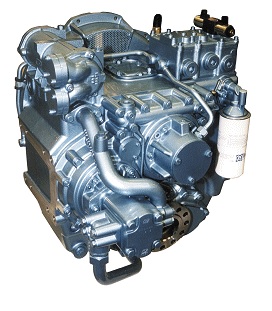

ZF2150A marine transmission by ZF Marine. Maximum input 1650 HP (1231 kW) at 2600 RPM. Available ratios 2.920 (special order: 2.714, 3.250). Rated for pleasure duty, light duty, medium duty and continuous duty service. ADR Power Systems supplies, installs, services and repairs ZF marine transmissions and stocks ZF parts.

Input Power:1650 HP (1230 kW)

View on ZF Website

Detailed Specifications

Transmission Specifications

Max Input Power:: 1650 HP (1230 kW)

Power Ratings

Duty	Ratios	hp/RPM	RPM	hp	RPM	hp	RPM	hp	Max hp	Max RPM
PD	2.714*, 2.920	0.6743	2100	1416	2300	1551	2450	1650	1650	2600
PD	3.250*	0.5441	2100	1143	2300	1251	2450	1331	1331	2600
LD	2.714*, 2.920	0.5876	2100	1234	2300	1351	2450	1438	1438	2600
LD	3.250*	0.4985	2100	1047	2300	1147	2450	1220	1220	2600
MD	2.714*	0.5057	1800	910	2100	1062	2250	1137	1137	2600
MD	2.920	0.4802	1800	864	2100	1008	2250	1079	1079	2600
MD	3.250*	0.4470	1800	805	2100	939	2250	1004	1004	2600
CD	2.714*	0.4172	1600	668	1800	751	2100	876	876	2100
CD	2.920	0.3778	1600	604	1800	680	2100	793	793	2100
CD	3.250*	0.3202	1600	512	1800	576	2100	672	672	2100

PD = Pleasure Duty, LD = Light Duty, MD = Medium Duty, CD = Continuous Duty. * Special-order ratio. Ratings per ZF Marine technical data sheet of 2026-04-02.

Key Features

Maximum input power: 1650 HP (1231 kW) at 2600 RPM
Gear ratios: 2.920
Special-order ratios: 2.714, 3.250
Duty ratings: pleasure duty, light duty, medium duty, continuous duty
