ZF2275
ZF2000 Series

ZF2275

Part Number: ZF-2275

Quote Required: This product requires a custom quote. Contact us for pricing and availability.

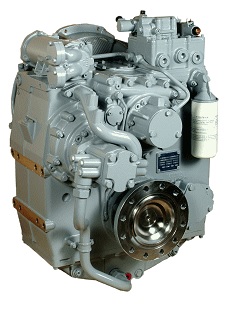

ZF2275 marine transmission by ZF Marine. Maximum input 1922 HP (1433 kW) at 2450 RPM. Available ratios 3.000. Rated for pleasure duty service. ADR Power Systems supplies, installs, services and repairs ZF marine transmissions and stocks ZF parts.

Input Power:1922 HP (1433 kW)

Contact us for pricing and availability

View on ZF Website

Detailed Specifications

Transmission Specifications

Max Input Power:
1922 HP (1433 kW)

Power Ratings

DutyRatioshp/RPMRPMhpRPMhpRPMhpMax hpMax RPM
PD3.0000.784521001647230018042450192219222450

PD = Pleasure Duty. No classification available. Ratings per ZF Marine technical data sheet of 2026-04-02.

Key Features

  • Maximum input power: 1922 HP (1433 kW) at 2450 RPM
  • Gear ratios: 3.000
  • Duty ratings: pleasure duty

Documents
