ZF2000 Series

ZF2300

Name: ZF2300
Brand: ZF
SKU: ZF-2300

Part Number: ZF-2300

Quote Required: This product requires a custom quote. Contact us for pricing and availability.

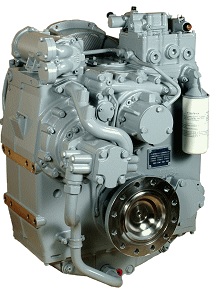

ZF2300 marine transmission by ZF Marine. Maximum input 1504 HP (1122 kW) at 2600 RPM. Available ratios 4.000, 4.444. Rated for pleasure duty, light duty, medium duty and continuous duty service. ADR Power Systems supplies, installs, services and repairs ZF marine transmissions and stocks ZF parts.

Input Power:1504 HP (1122 kW)

View on ZF Website

Detailed Specifications

Transmission Specifications

Max Input Power:: 1504 HP (1122 kW)

Power Ratings

Duty	Ratios	hp/RPM	RPM	hp	RPM	hp	RPM	hp	Max hp	Max RPM
PD	4.000, 4.444	0.6142	2100	1290	2300	1413	2450	1504	1504	2600
LD	4.000, 4.444	0.5447	2100	1144	2300	1253	2450	1334	1334	2600
MD	4.000, 4.444	0.4305	1800	775	2100	904	2250	968	968	2600
CD	4.000, 4.444	0.3780	1600	605	1800	680	2100	794	794	2100

PD = Pleasure Duty, LD = Light Duty, MD = Medium Duty, CD = Continuous Duty. U-drive version also available. Ratings per ZF Marine technical data sheet of 2026-04-02.

Key Features

Maximum input power: 1504 HP (1122 kW) at 2600 RPM
Gear ratios: 4.000, 4.444
Duty ratings: pleasure duty, light duty, medium duty, continuous duty

Documents

ZF2300 datasheet (PDF)
