ZF2000 Series

ZF2350

Name: ZF2350
Brand: ZF
SKU: ZF-2350

Part Number: ZF-2350

Quote Required: This product requires a custom quote. Contact us for pricing and availability.

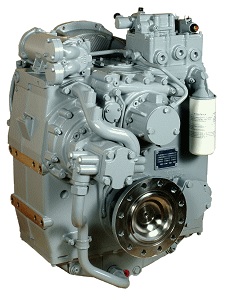

ZF2350 marine transmission by ZF Marine. Maximum input 1652 HP (1232 kW) at 2600 RPM. Available ratios 4.000, 4.444 (special order: 4.760). Rated for pleasure duty, light duty, medium duty and continuous duty service. ADR Power Systems supplies, installs, services and repairs ZF marine transmissions and stocks ZF parts.

Input Power:1652 HP (1232 kW)

View on ZF Website

Detailed Specifications

Transmission Specifications

Max Input Power:: 1652 HP (1232 kW)

Power Ratings

Duty	Ratios	hp/RPM	RPM	hp	RPM	hp	RPM	hp	Max hp	Max RPM
PD	4.000, 4.444	0.6744	2100	1416	2300	1551	2450	1652	1652	2600
PD	4.760*	0.6440	2100	1352	2300	1481	2450	1577	1577	2600
LD	4.000, 4.444, 4.760*	0.5876	2100	1234	2300	1351	2450	1438	1438	2600
MD	4.000, 4.444, 4.760*	0.5057	1800	910	2100	1062	2250	1137	1137	2600
CD	4.000, 4.444	0.4169	1600	667	1800	750	2100	875	875	2100
CD	4.760*	0.4003	1600	640	1800	721	2100	841	841	2100

PD = Pleasure Duty, LD = Light Duty, MD = Medium Duty, CD = Continuous Duty. * Special-order ratio. U-drive version also available. Ratings per ZF Marine technical data sheet of 2026-04-02.

Key Features

Maximum input power: 1652 HP (1232 kW) at 2600 RPM
Gear ratios: 4.000, 4.444
Special-order ratios: 4.760
Duty ratings: pleasure duty, light duty, medium duty, continuous duty

Documents

ZF2350 datasheet (PDF)
