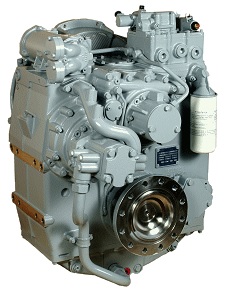

ZF2000 Series

ZF2360

Name: ZF2360
Brand: ZF
SKU: ZF-2360

Part Number: ZF-2360

Quote Required: This product requires a custom quote. Contact us for pricing and availability.

ZF2360 marine transmission by ZF Marine. Maximum input 1811 HP (1350 kW) at 2450 RPM. Available ratios 4.000, 4.444. Rated for pleasure duty service. ADR Power Systems supplies, installs, services and repairs ZF marine transmissions and stocks ZF parts.

Input Power:1811 HP (1350 kW)

View on ZF Website

Detailed Specifications

Transmission Specifications

Max Input Power:: 1811 HP (1350 kW)

Power Ratings

Duty	Ratios	hp/RPM	RPM	hp	RPM	hp	RPM	hp	Max hp	Max RPM
PD	4.000, 4.444	0.7390	2100	1552	2300	1700	2450	1811	1811	2450

PD = Pleasure Duty. U-drive version also available. Ratings per ZF Marine technical data sheet of 2026-04-02.

Key Features

Maximum input power: 1811 HP (1350 kW) at 2450 RPM
Gear ratios: 4.000, 4.444
Duty ratings: pleasure duty

Documents

ZF2360 datasheet (PDF)
