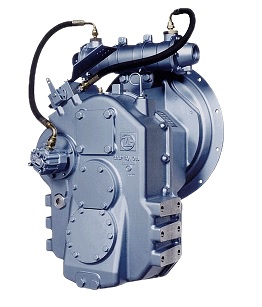

ZF286IV

Name: ZF286IV
Brand: ZF
SKU: ZF-286IV

Part Number: ZF-286IV

Quote Required: This product requires a custom quote. Contact us for pricing and availability.

ZF286IV marine transmission by ZF Marine. Maximum input 828 HP (617 kW) at 3600 RPM. Available ratios 1.535, 2.011, 2.539 (special order: 1.266, 2.322). Rated for pleasure duty, light duty and medium duty service. ADR Power Systems supplies, installs, services and repairs ZF marine transmissions and stocks ZF parts.

Input Power:828 HP (617 kW)

View on ZF Website

Detailed Specifications

Transmission Specifications

Max Input Power:: 828 HP (617 kW)

Power Ratings

Duty	Ratios	hp/RPM	RPM	hp	RPM	hp	RPM	hp	Max hp	Max RPM
PD	1.266*, 1.535, 2.011	0.2300	2500	575	2800	644	3300	759	828	3600
PD	2.322*	0.2172	2500	543	2800	608	3300	717	782	3600
PD	2.539	0.1999	2500	500	2800	560	3300	660	720	3600
LD	1.266*, 1.535, 2.011	0.2072	2100	435	2500	518	2800	580	746	3600
LD	2.322*	0.1900	2100	399	2500	475	2800	532	684	3600
LD	2.539	0.1840	2100	386	2500	460	2800	515	662	3600
MD	1.266*, 1.535, 2.011	0.1545	2100	324	2500	386	2800	433	556	3600
MD	2.322*	0.1456	2100	306	2500	364	2800	408	524	3600
MD	2.539	0.1412	2100	297	2500	353	2800	395	508	3600

PD = Pleasure Duty, LD = Light Duty, MD = Medium Duty. * Special-order ratio. Ratings per ZF Marine technical data sheet of 2026-04-02.

Key Features

Maximum input power: 828 HP (617 kW) at 3600 RPM
Gear ratios: 1.535, 2.011, 2.539
Special-order ratios: 1.266, 2.322
Duty ratings: pleasure duty, light duty, medium duty
