ZF200–400 Series

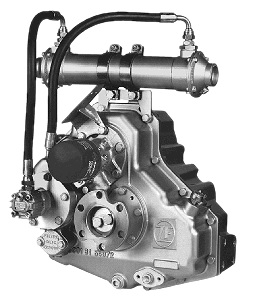

ZF301-1C

Name: ZF301-1C
Brand: ZF
SKU: ZF-301-1C

Part Number: ZF-301-1C

Quote Required: This product requires a custom quote. Contact us for pricing and availability.

ZF301-1C marine transmission by ZF Marine. Maximum input 582 HP (434 kW) at 3000 RPM. Available ratios 1.862, 2.694 (special order: 1.004, 1.236, 1.408). Rated for pleasure duty, light duty, medium duty and continuous duty service. ADR Power Systems supplies, installs, services and repairs ZF marine transmissions and stocks ZF parts.

Input Power:582 HP (434 kW)

View on ZF Website

Detailed Specifications

Transmission Specifications

Max Input Power:: 582 HP (434 kW)

Power Ratings

Duty	Ratios	hp/RPM	RPM	hp	RPM	hp	RPM	hp	Max hp	Max RPM
PD	1.004*	0.1497	2300	344	2500	374	2800	419	449	3000
PD	1.236, 1.408, 1.862, 2.694	0.1939	2300	446	2500	485	2800	543	582	3000
LD	1.004*	0.1337	2100	281	2500	334	2800	374	401	3000
LD	1.236, 1.408, 1.862, 2.694	0.1723	2100	362	2500	431	2800	482	517	3000
MD	1.236, 1.408	0.1435	2100	301	2500	359	2800	402	430	3000
MD	1.862, 2.694	0.1291	2100	271	2500	323	2800	361	387	3000
CD	1.236, 1.408, 1.862	0.0983	1800	177	2100	206	2300	226	295	3000
CD	2.694	0.0960	1800	173	2100	202	2300	221	288	3000

PD = Pleasure Duty, LD = Light Duty, MD = Medium Duty, CD = Continuous Duty. * Special-order ratio. Ratings per ZF Marine technical data sheet of 2026-04-02.

Key Features

Maximum input power: 582 HP (434 kW) at 3000 RPM
Gear ratios: 1.862, 2.694
Special-order ratios: 1.004, 1.236, 1.408
Duty ratings: pleasure duty, light duty, medium duty, continuous duty

Documents

ZF301-1C datasheet (PDF)
