ZFW Series

ZFW2350

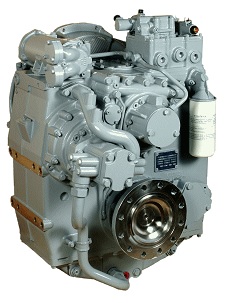

Name: ZFW2350
Brand: ZF
SKU: ZF-W2350

Part Number: ZF-W2350

Quote Required: This product requires a custom quote. Contact us for pricing and availability.

ZFW2350 marine transmission by ZF Marine. Maximum input 1137 HP (848 kW) at 2600 RPM, medium duty. Available ratios 4.000, 4.444 (special order: 3.028, 3.500, 4.760). Rated for medium duty and continuous duty service. ADR Power Systems supplies, installs, services and repairs ZF marine transmissions and stocks ZF parts.

Input Power:1137 HP (848 kW)

View on ZF Website

Detailed Specifications

Transmission Specifications

Max Input Power:: 1137 HP (848 kW)

Power Ratings

Duty	Ratios	hp/RPM	RPM	hp	RPM	hp	RPM	hp	Max hp	Max RPM
MD	3.028, 3.500, 4.000, 4.444, 4.760*	0.5057	1800	910	2100	1062	2250	1137	1137	2600
CD	3.028, 3.500, 4.000, 4.444	0.4169	1600	667	1800	750	2100	875	875	2100
CD	4.760*	0.4003	1600	640	1800	721	2100	841	841	2100

MD = Medium Duty, CD = Continuous Duty. * Special-order ratio. U-drive version also available. Ratings per ZF Marine technical data sheet of 2026-04-02.

Key Features

Maximum input power: 1137 HP (848 kW) at 2600 RPM, medium duty
Gear ratios: 4.000, 4.444
Special-order ratios: 3.028, 3.500, 4.760
Duty ratings: medium duty, continuous duty

Documents

ZFW2350 datasheet (PDF)
