ZFW Series

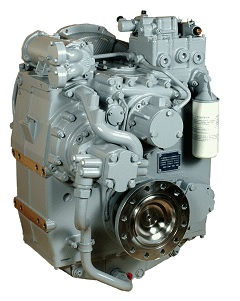

ZFW2450

Name: ZFW2450
Brand: ZF
SKU: ZF-W2450

Part Number: ZF-W2450

Quote Required: This product requires a custom quote. Contact us for pricing and availability.

ZFW2450 marine transmission by ZF Marine. Maximum input 1062 HP (792 kW) at 2600 RPM, medium duty. Available ratios 5.036, 5.500, 6.042, 6.160, 6.458, 6.923. Rated for medium duty and continuous duty service. ADR Power Systems supplies, installs, services and repairs ZF marine transmissions and stocks ZF parts.

Input Power:1062 HP (792 kW)

View on ZF Website

Detailed Specifications

Transmission Specifications

Max Input Power:: 1062 HP (792 kW)

Power Ratings

Duty	Ratios	hp/RPM	RPM	hp	RPM	hp	RPM	hp	Max hp	Max RPM
MD	5.036	0.5057	1800	910	2100	1062	2250	1062	1062	2600
MD	5.500	0.4774	1800	859	2100	1003	2250	1003	1003	2600
MD	6.042	0.4305	1800	775	2100	903	2250	903	903	2600
MD	6.160	0.4169	1800	750	2100	875	2250	875	875	2600
MD	6.458	0.3467	1800	624	2100	728	2250	728	728	2600
MD	6.923	0.3016	1800	543	2100	632	2250	632	632	2600
CD	5.036, 5.500, 6.042, 6.160	0.4169	1600	667	1800	750	2100	875	875	2100
CD	6.458	0.3467	1600	555	1800	624	2100	728	728	2100
CD	6.923	0.3016	1600	483	1800	543	2100	632	632	2100

MD = Medium Duty, CD = Continuous Duty. U-drive version also available. Ratings per ZF Marine technical data sheet of 2026-04-02.

Key Features

Maximum input power: 1062 HP (792 kW) at 2600 RPM, medium duty
Gear ratios: 5.036, 5.500, 6.042, 6.160, 6.458, 6.923
Duty ratings: medium duty, continuous duty

Documents

ZFW2450 datasheet (PDF)
