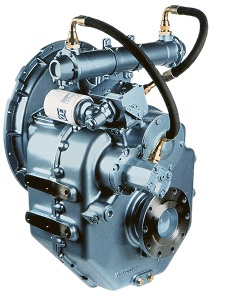

ZFW325
ZFW Series

ZFW325

Part Number: ZF-W325

Quote Required: This product requires a custom quote. Contact us for pricing and availability.

ZFW325 marine transmission by ZF Marine. Maximum input 681 HP (508 kW) at 2600 RPM, medium duty. Available ratios 2.933, 3.407, 3.958, 4.409, 5.167. Rated for medium duty and continuous duty service. ADR Power Systems supplies, installs, services and repairs ZF marine transmissions and stocks ZF parts.

Input Power:681 HP (508 kW)

Contact us for pricing and availability

View on ZF Website

Detailed Specifications

Transmission Specifications

Max Input Power:
681 HP (508 kW)

Medium Duty Ratings

RatiosPower factor (HP/RPM)HP @ 1800 RPM (MD)HP @ 2100 RPM (MD)HP @ 2300 RPM (MD)Max HPMax RPM
2.933, 3.407, 3.9580.26194715506026812600
4.4090.24044335055536252600
5.1670.19283474054435012600

MD = Medium Duty. Ratings from ADR's archived ZF data sheet (model not in ZF's current configurator).

Continuous Duty Ratings

RatiosPower factor (HP/RPM)HP @ 1600 RPM (CD)HP @ 1800 RPM (CD)HP @ 2100 RPM (CD)Max HPMax RPM
2.933, 3.407, 3.9580.22223564004675782600
4.4090.20563293704325352600
5.1670.16672673003504332600

CD = Continuous Duty. Ratings from ADR's archived ZF data sheet (model not in ZF's current configurator).

Key Features

  • Maximum input power: 681 HP (508 kW) at 2600 RPM, medium duty
  • Gear ratios: 2.933, 3.407, 3.958, 4.409, 5.167
  • Duty ratings: medium duty, continuous duty
