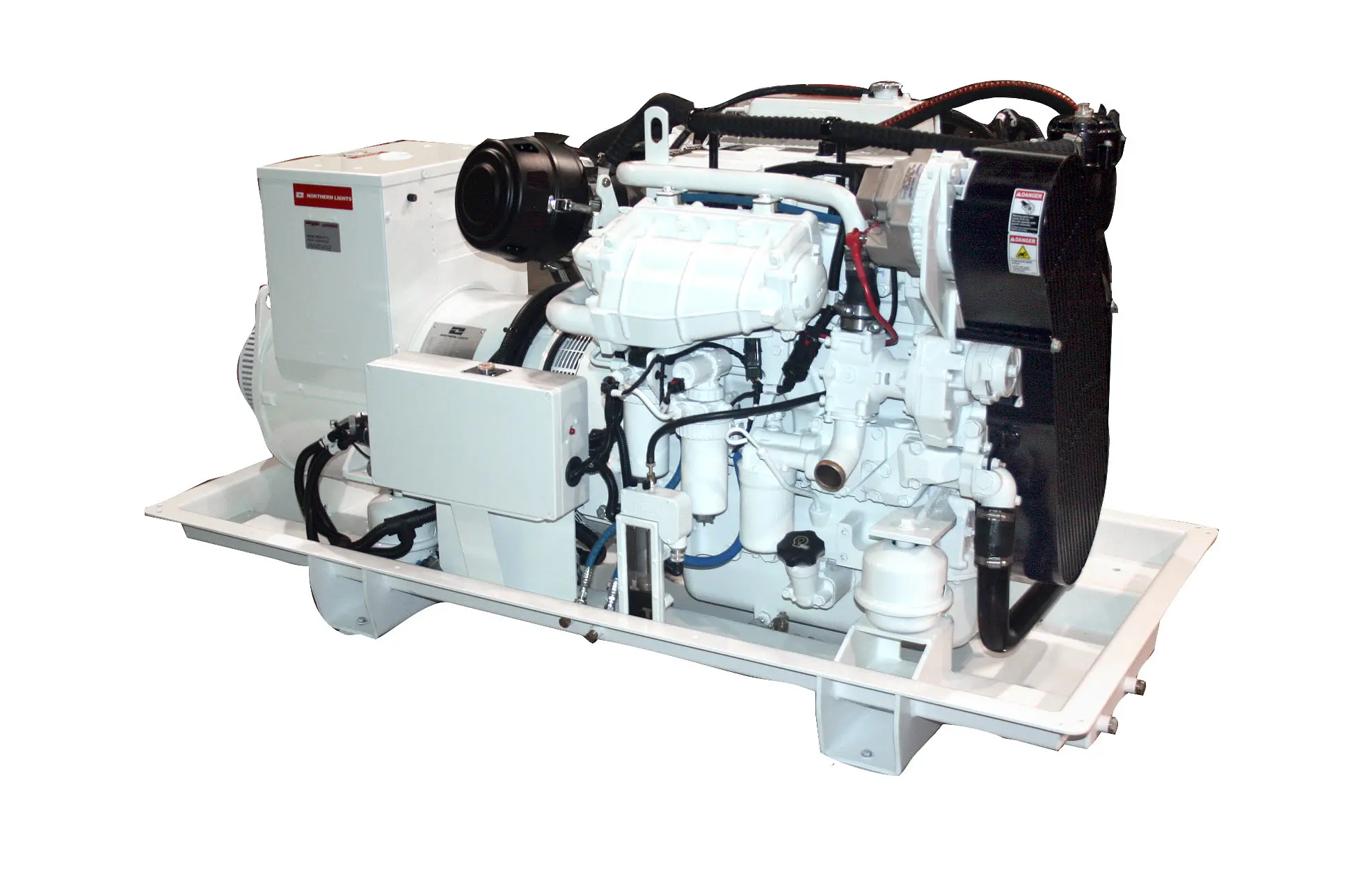

Northern LightsM-Series
M80A13L
Part Number: NL-M80A13L
Quote Required: This product requires a custom quote. Contact us for pricing and availability.
80kW (60Hz, 1800 rpm, 3 ph)
Power:80.0 kW
Weight:1409.31 kg
Contact us for pricing and availability
Detailed Specifications
Motor Specifications
- Max Power:
- 80.0 kW
- Cooling:
- Water-cooled diesel engine
Physical Dimensions
- Length:
- 1905 mm
- Width:
- 965.2 mm
- Height:
- 1000.76 mm
- Net Weight:
- 1409.31 kg
Key Features
- 80 kW marine diesel generator
- I-4 / Turbo and aftercooled /4
- Dry weight: 1409.31 kg
- Dimensions: 1905 × 965.2 × 1000.76 mm
- High Pressure Common Rail
- Aftercooled for maximum efficiency
Performance Details
- Engine: I-4 / Turbo and aftercooled /4
- Displacement: 276 cubic inch
- Bore/Stroke: 4.19/5 in
- Power Output: 80kW (60Hz, 1800 rpm, 3 ph)
- Dry Weight: 1409.31 kg (3107 lbs)
- Dimensions: 1905 × 965.2 × 1000.76 mm
Product Codes & Identifiers
- HS Code (EU):
- 85021100
- HS Code (US):
- 8502.11
