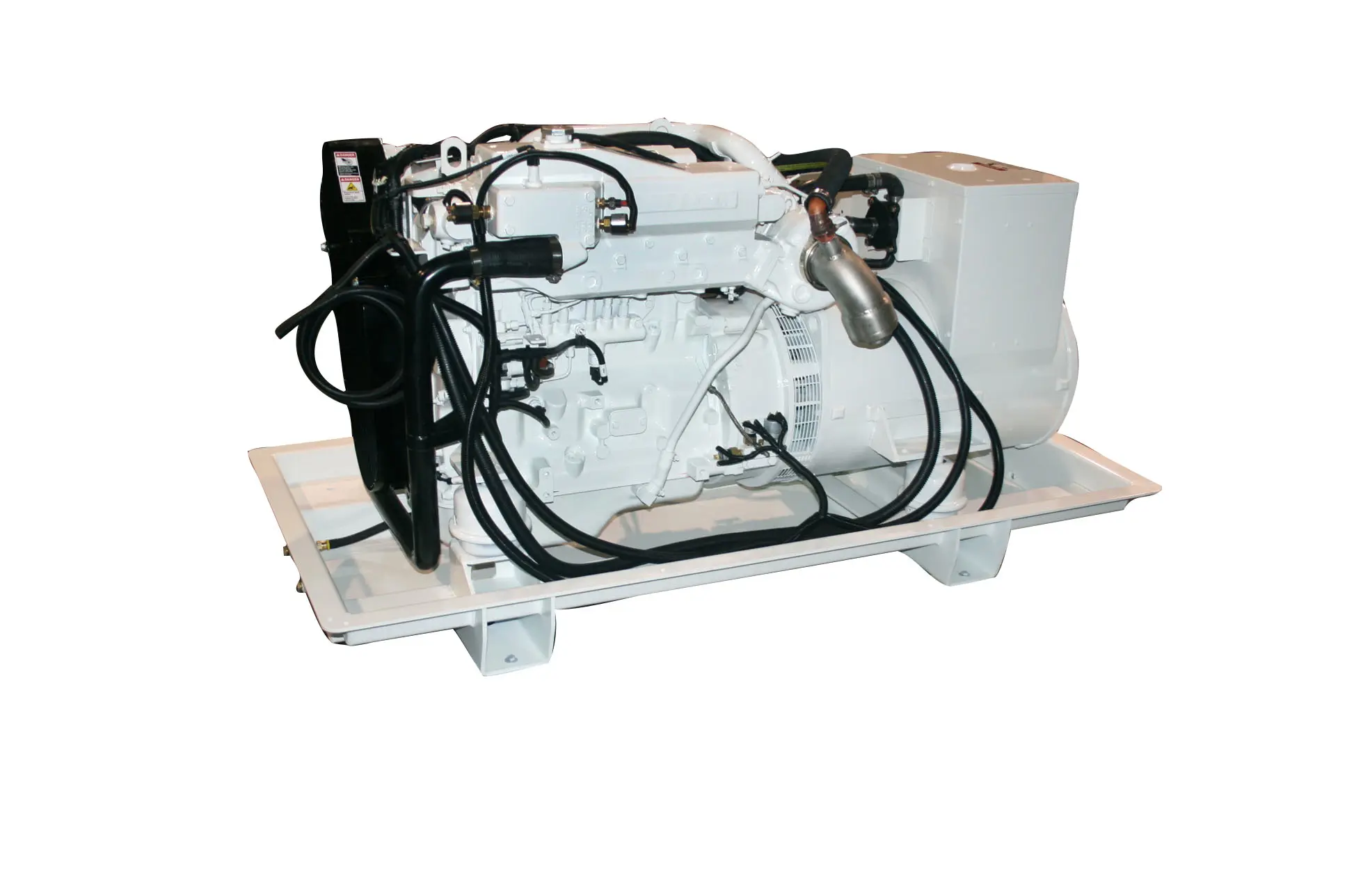

Northern LightsM-Series
M50T13L
Part Number: NL-M50T13L
Quote Required: This product requires a custom quote. Contact us for pricing and availability.
50kW (60Hz, 1800 rpm, 1ph, 240V/208A)
Power:50.0 kW
Weight:1050.07 kg
Contact us for pricing and availability
Detailed Specifications
Motor Specifications
- Max Power:
- 50.0 kW
- Cooling:
- Water-cooled diesel engine
Physical Dimensions
- Length:
- 1905 mm
- Width:
- 965.2 mm
- Height:
- 970.28 mm
- Net Weight:
- 1050.07 kg
Key Features
- 50 kW marine diesel generator
- I-4 / Turbocharged/4
- Dry weight: 1050.07 kg
- Dimensions: 1905 × 965.2 × 970.28 mm
- High Pressure Common Rail
- Turbocharged for enhanced performance
Performance Details
- Engine: I-4 / Turbocharged/4
- Displacement: 276 cubic inch
- Bore/Stroke: 4.19/5 in
- Power Output: 50kW (60Hz, 1800 rpm, 1ph, 240V/208A)
- Dry Weight: 1050.07 kg (2315 lbs)
- Dimensions: 1905 × 965.2 × 970.28 mm
Product Codes & Identifiers
- HS Code (EU):
- 85021100
- HS Code (US):
- 8502.11
