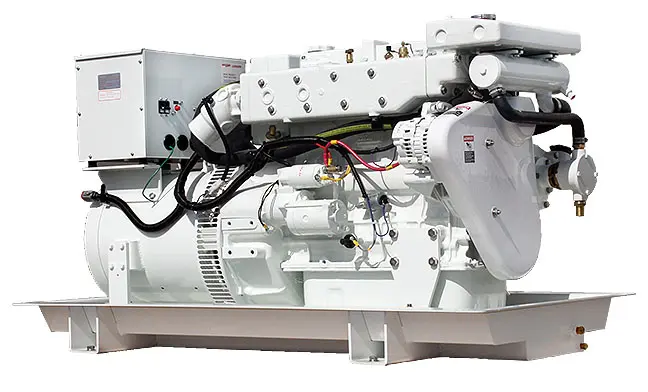

Northern LightsM-Series
M944W3FG
Part Number: NL-M944W3FG
Quote Required: This product requires a custom quote. Contact us for pricing and availability.
30 kW (60 Hz, 1800 rpm, 1 & 3ph, 120/240 V/125 A, 120 V/250 A)
Power:30.0 kW
Weight:602.82 kg
Contact us for pricing and availability
Detailed Specifications
Motor Specifications
- Max Power:
- 30.0 kW
- Cooling:
- Water-cooled diesel engine
Physical Dimensions
- Length:
- 1488.44 mm
- Width:
- 673.1 mm
- Height:
- 784.86 mm
- Net Weight:
- 602.82 kg
Key Features
- 30 kW marine diesel generator
- Vertical inline 4 cylinder diesel
- Dry weight: 602.82 kg
- Dimensions: 1488.44 × 673.1 × 784.86 mm
Performance Details
- Engine: Vertical inline 4 cylinder diesel
- Displacement: 203cubic inch
- Bore/Stroke: 3.70/4.72 in
- HP@RPM: 43.5/1800
- Power Output: 30 kW (60 Hz, 1800 rpm, 1 & 3ph, 120/240 V/125 A, 120 V/250 A)
- Dry Weight: 602.82 kg (1329 lbs)
- Dimensions: 1488.44 × 673.1 × 784.86 mm
Product Codes & Identifiers
- HS Code (EU):
- 85021100
- HS Code (US):
- 8502.11
