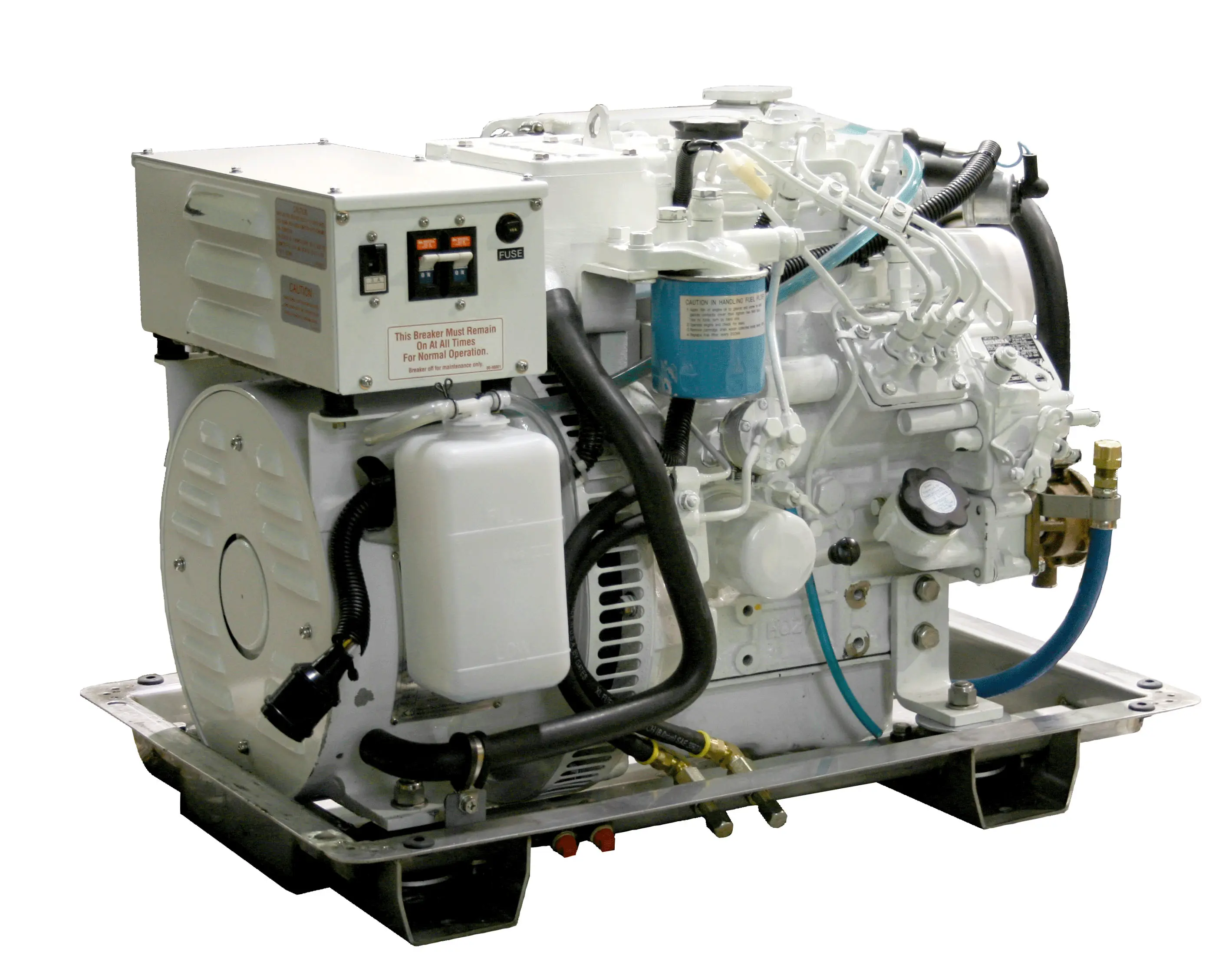

Northern LightsM-Series
M673LD3G
Part Number: NL-M673LD3G
Quote Required: This product requires a custom quote. Contact us for pricing and availability.
4.5 kW (50 Hz, 1500 rpm, 1 ph, 1.0 PF, 220 V/20.5 A) 5 kW (60 Hz, 1800 rpm, 1 ph , 1.0 PF, 240 V/20.8 A, 120 V/41.6 A)
Power:4.5 kW
Weight:168.28 kg
Contact us for pricing and availability
Detailed Specifications
Motor Specifications
- Max Power:
- 4.5 kW
- Cooling:
- Water-cooled diesel engine
Physical Dimensions
- Length:
- 69.85 mm
- Width:
- 424.18 mm
- Height:
- 520.7 mm
- Net Weight:
- 168.28 kg
Key Features
- 4.5 kW marine diesel generator
- Vertical inline 3 cylinder diesel
- Dry weight: 168.28 kg
- Dimensions: 69.85 × 424.18 × 520.7 mm
Performance Details
- Engine: Vertical inline 3 cylinder diesel
- Displacement: 46.4 cubic inch
- Bore/Stroke: 2.64/2.83 in
- HP@RPM: 10.1/1800 8.4/1500
- Power Output: 4.5 kW (50 Hz, 1500 rpm, 1 ph, 1.0 PF, 220 V/20.5 A) 5 kW (60 Hz, 1800 rpm, 1 ph , 1.0 PF, 240 V/20.8 A, 120 V/41.6 A)
- Dry Weight: 168.28 kg (371lbs)
- Dimensions: 69.85 × 424.18 × 520.7 mm
Product Codes & Identifiers
- HS Code (EU):
- 85021100
- HS Code (US):
- 8502.11
