LuggerL4105

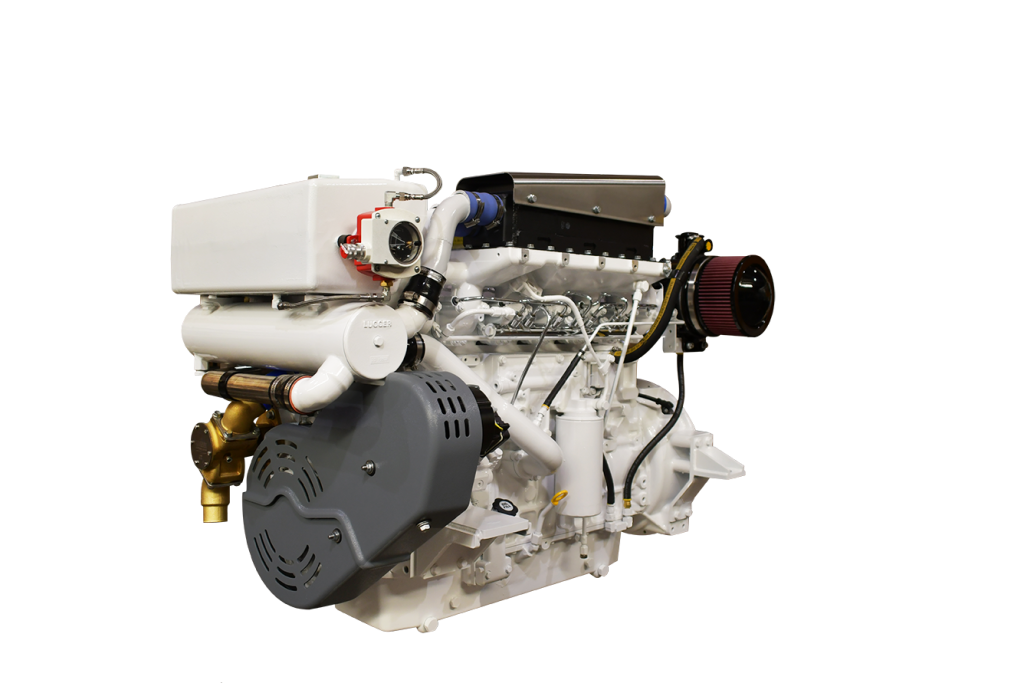

Lugger L4105 Propulsion Engine
Part Number: LUGGER-L4105
Quote Required: This product requires a custom quote. Contact us for pricing and availability.
4-cylinder turbocharged marine diesel engine with 174-300 HP range. Features individual cylinder heads, forged crankshaft, and replaceable wet liners for long-life durability. EPA Tier 3 compliant.
Power:300 HP (224 kW)
Weight:630 kg
Contact us for pricing and availability
Detailed Specifications
Motor Specifications
- Min Power:
- 174 HP (130 kW)
- Max Power:
- 300 HP (224 kW)
- Cooling:
- Heat Exchanger (Keel-Cooling Optional)
Physical Dimensions
- Length:
- 1143 mm
- Width:
- 955 mm
- Height:
- 1014 mm
- Net Weight:
- 630 kg
Key Features
- 4-cylinder, 4-stroke turbo-aftercooled diesel
- 4.8L (293 in³) displacement
- 174-300 HP power range
- Individual cylinder heads for ease of service
- Forged crankshaft for durability
- Replaceable wet liners
- Electronic fuel injection (HPCR)
- EPA Tier 3 compliant
Performance Details
- L4105A1: 174 HP @ 2100 RPM (Continuous Duty)
- L4105A2: 220 HP @ 2250 RPM (Medium Duty)
- L4105H1: 270 HP @ 2400 RPM (High Output)
- L4105H2: 300 HP @ 2500 RPM (Pleasure Craft)
