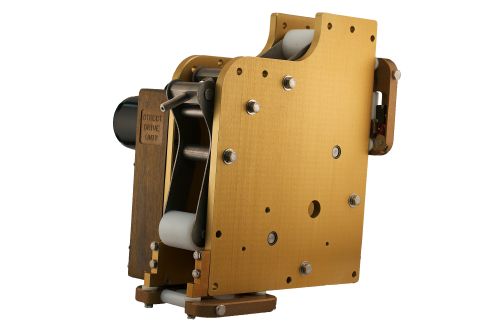

Glendinning Cablemaster CM-9
Part Number: GL-CM9-00
Quote Required: This product requires a custom quote. Contact us for pricing and availability.
The Glendinning Cablemaster CM-9 is the flagship heavy-duty motorized power cable handling and storage system designed for 150 amp or greater shore power cables. Features push-button extend and retract functionality for the highest amperage applications on superyachts and commercial vessels. Handles cables with 1.5"-2.4" (38-70mm) outside diameter.
Contact us for pricing and availability
Detailed Specifications
Key Features
- Push-button motorized cable extension and retraction
- Handles 150 amp or greater shore power cables
- Cable diameter range: 1.5"-2.4" (38-70mm)
- #0 AWG / 50mm² or larger conductor size
- 24 VDC operation
- Unlimited cable length depending on storage capacity
- No slip rings - direct power panel connection
- Compatible with Type S, ST, SE, PUR cable jackets
- Optional hawse pipe configurations
- Ideal for superyachts and commercial vessels
Performance Details
- Part 04097-21-24: 24 VDC, CM-9 Power Unit only
- Part 04097-25-24: 24 VDC, CM-9 with CM-8 Hawse Pipe (aluminum)
- Part 04095: 24 VDC, CM-9 Hawse Pipe - Stainless Steel
- Cable Outside Diameter: 1.5"-2.4" (38-70mm)
- Typical Amperage: 150A or greater
