GlendinningCablemaster CM
Glendinning Cablemaster CM-8
Part Number: GL-CM8-00
Quote Required: This product requires a custom quote. Contact us for pricing and availability.

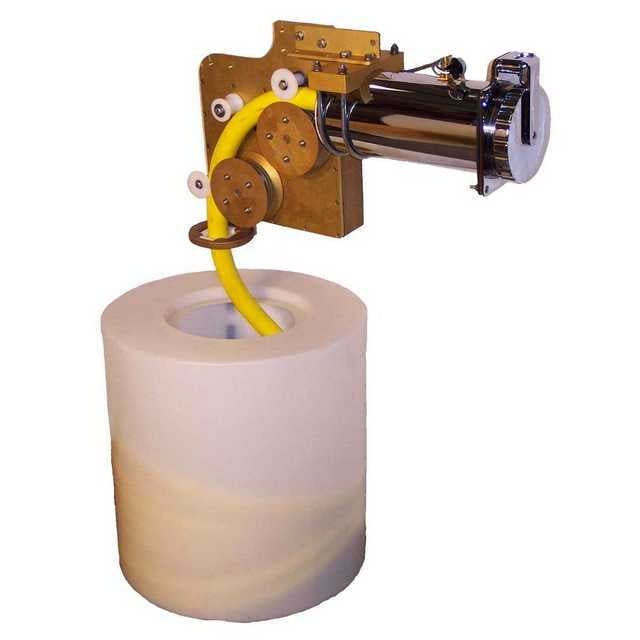

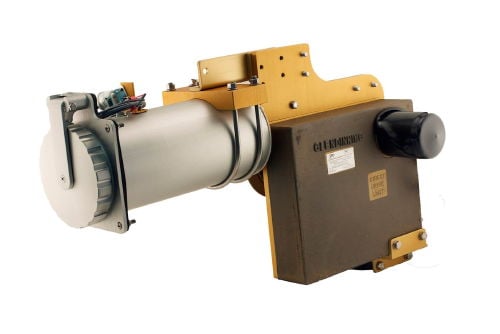

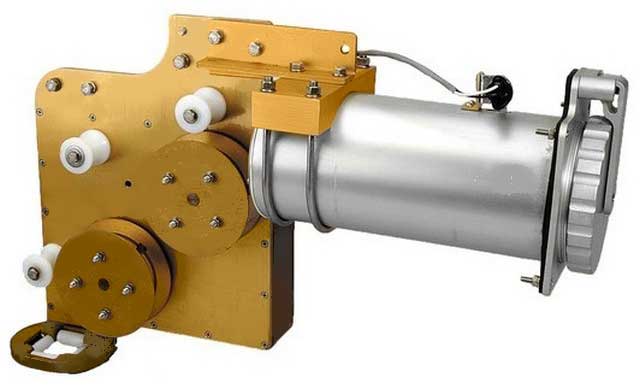

The Glendinning Cablemaster CM-8 is a heavy-duty motorized power cable handling and storage system designed for 100-125 amp shore power cables. Features push-button extend and retract functionality for high-amperage applications on larger vessels. Handles cables with 1.15"-1.5" (29-38mm) outside diameter. Available with optional hawse pipe for clean installations.
Contact us for pricing and availability
Detailed Specifications
Key Features
- Push-button motorized cable extension and retraction
- Handles 100-125 amp shore power cables
- Cable diameter range: 1.15"-1.5" (29-38mm)
- #2 AWG / 35mm² conductor size (3-5 conductors)
- 24 VDC operation
- Unlimited cable length depending on storage capacity
- No slip rings - direct power panel connection
- Compatible with Type S, ST, SE, PUR cable jackets
- Optional hawse pipe available
- Ideal for large yachts and commercial vessels
Performance Details
- Part 04091: 24 VDC, CM-8 Cablemaster
- Part 04093: 24 VDC, CM-8 with Hawse Pipe
- Part 04094: 24 VDC, CM-8 without Hawse Pipe
- Cable Outside Diameter: 1.15"-1.5" (29-38mm)
- Typical Amperage: 100-125A
