GlendinningCablemaster CM
Glendinning Cablemaster CM-7
Part Number: GL-CM7-00
Quote Required: This product requires a custom quote. Contact us for pricing and availability.

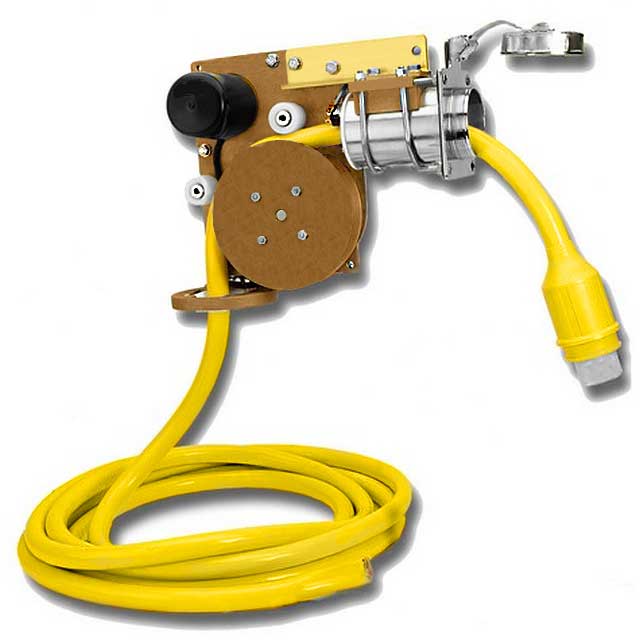

The Glendinning Cablemaster CM-7 is a motorized power cable handling and storage system designed for 50 amp (US) or 63 amp (EU) shore power cables. Features push-button extend and retract functionality for effortless cable management. Handles cables with .8"-1.15" (20-29mm) outside diameter. Available in 12 or 24 VDC configurations. Widely accepted by major yacht manufacturers worldwide.
Contact us for pricing and availability
Detailed Specifications
Key Features
- Push-button motorized cable extension and retraction
- Handles 50 amp (US) / 63 amp (EU) shore power cables
- Cable diameter range: .8"-1.15" (20-29mm)
- #6 AWG / 16mm² conductor size (3-4 conductors)
- Available in 12 VDC or 24 VDC configurations
- Unlimited cable length depending on storage capacity
- No slip rings - direct power panel connection
- Compatible with Type S, ST, SE, PUR cable jackets
- CE and ISO 8846 certified
- Widely accepted by major yacht manufacturers
Performance Details
- Part 04021: 12 VDC, #6 AWG / 3 cond.
- Part 04020: 12 VDC, #6 AWG / 4 cond.
- Part 04023: 24 VDC, #6 AWG / 3 cond.
- Part 04022: 24 VDC, #6 AWG / 4 cond.
- Cable Outside Diameter: .8"-1.15" (20-29mm)
- Typical Amperage: 50A (US) / 63A (EU)
