Glendinning Cablemaster CM-4
Part Number: GL-CM4-00
Quote Required: This product requires a custom quote. Contact us for pricing and availability.

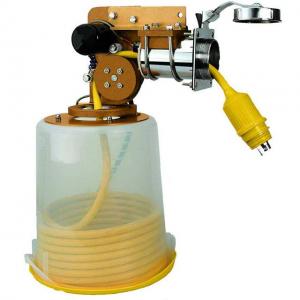

The Glendinning Cablemaster CM-4 is a motorized power cable handling and storage system designed for 30 amp (US) or 16/32 amp (EU) shore power cables. Features push-button extend and retract functionality, eliminating the effort of carrying and coiling power cable. Handles cables with .5"-.8" (12-20mm) outside diameter. Available in 12 or 24 VDC configurations. Designed and assembled in U.S.A. Fully tested and approved: CE, ISO 8846.
Contact us for pricing and availability
Detailed Specifications
Key Features
- Push-button motorized cable extension and retraction
- Handles 30 amp (US) / 16/32 amp (EU) shore power cables
- Cable diameter range: .5"-.8" (12-20mm)
- #10 AWG / 6mm² conductor size (3-4 conductors)
- Available in 12 VDC or 24 VDC configurations
- Unlimited cable length depending on storage capacity
- No slip rings - direct power panel connection
- Compatible with Type S, ST, SE, PUR cable jackets
- CE and ISO 8846 certified
- Designed and assembled in U.S.A.
Performance Details
- Part 05010: 12 VDC, #10 AWG / 6mm² / 3 cond.
- Part 05013: 24 VDC, #10 AWG / 6mm² / 3 cond.
- Cable Outside Diameter: .5"-.8" (12-20mm)
- Typical Amperage: 30A (US) / 16-32A (EU)
