Smart Actuator 4

Part Number: GL-SA4-00

Quote Required: This product requires a custom quote. Contact us for pricing and availability.

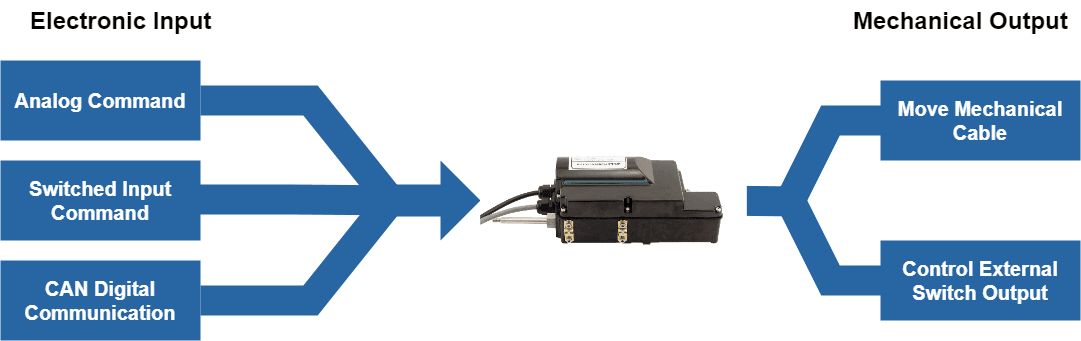

Intuitive single function linear motion mechanical actuator for any mechanical function. The Smart Actuator 4 receives various electrical/electronic commands (analog, switched, or CAN digital) and outputs as mechanical motion. Compatible with all vessel types including inboard, outboard, sterndrive, and waterjet.

Weight:2.1 kg

Contact us for pricing and availability

Detailed Specifications

Physical Dimensions

Length:
233 mm
Width:
124 mm
Height:
90 mm
Net Weight:
2.1 kg

Available Models

11356E-A (Analog Input)
11356E-C4 (Throttle/E-Shift)
11356E-C10 (Shift)
11356E-C11 (Bucket/Pitch)
11356E-C12 (Troll)

Key Features

  • Intuitive linear actuator for any mechanical function
  • Single function linear motion mechanical actuator
  • Receives electrical/electronic commands and controls mechanical devices
  • Compatible with all vessel types: inboard, outboard, sterndrive, waterjet
  • Multiple input types: Analog, Switched Input, CAN Digital Communication
  • Mechanical cable movement output
  • Control external switch output capability
  • Operating voltage: 10-36 VDC (wide voltage range)
  • Mechanical output: 40 kg force
  • Mechanical output speed: 60mm/sec (adjustable)
  • IP67 ingress protection - fully waterproof
  • CE compliant
  • 2 x switch outputs for trim pump or electrical shift
  • Compact design: 233mm × 124mm × 90mm

Performance Details

  • Actuator Type: Single function linear motion
  • Applications: Any mechanical function on marine vessels
  • Vessel Types: Inboard, Outboard, Sterndrive, Waterjet
  • Electronic Input: Analog Command, Switched Input, CAN Digital Communication
  • Mechanical Output: Cable movement, External switch control
  • Operating Voltage: 10 - 36 VDC
  • Control Input: CANbus / Analog / Switch Control
  • Output Force: 40 kg
  • Output Speed: 60mm/sec (can be reduced)
  • Dimensions: 233mm (L) × 124mm (W) × 90mm (H)
  • Protection: IP67 (fully waterproof)
  • Compliance: CE requirements
  • Switch Outputs: 2 outputs for trim pump or electrical shift
  • Functions: Throttle, E-Shift, Shift, Bucket/Pitch, Troll
  • Available Models: 11356E-A (Analog Input), 11356E-C4 (Throttle/E-Shift), 11356E-C10 (Shift), 11356E-C11 (Bucket/Pitch), 11356E-C12 (Troll)
