FPTNEF N67
FPT NEF N67 450 N Commercial Marine Engine
Part Number: FPT-NEF-N67-450-N-COM
Quote Required: This product requires a custom quote. Contact us for pricing and availability.

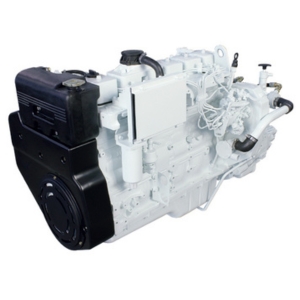

The FPT NEF N67 450 N Commercial is a high-performance turbo-aftercooled 6-cylinder marine diesel engine with electronic Common Rail injection. Features multiple commercial duty ratings with IWV Stage V certification available.
Power:420 HP (313 kW)
Weight:600 kg
Contact us for pricing and availability
Detailed Specifications
Motor Specifications
- Max Power:
- 420 HP (313 kW)
- Cooling:
- Liquid
Physical Dimensions
- Length:
- 1088 mm
- Width:
- 717 mm
- Height:
- 789 mm
- Net Weight:
- 600 kg
Key Features
- 6-cylinder in-line, 4-stroke turbo-aftercooled diesel
- 6.7L displacement
- Electronic Common Rail (CR) injection system
- 4 valves per cylinder
- Commercial duty ratings (B1, B, C, D)
- IMO II and EPA Tier 3 compliant
- IWV Stage V certification available
- Fixed speed generator ratings available
Performance Details
- B1 Rating: 309 kW (420 HP) @ 3000 RPM
- B Rating: 272 kW (370 HP) @ 3000 RPM
- C Rating: 257 kW (350 HP) @ 3000 RPM
- D Rating: 215 kW (292 HP) @ 2000 RPM
- D Rating: 125 kW (170 HP) @ 2300 RPM (IWV Stage V)
- Fixed Speed: 125 kW @ 1500 RPM (IWV Stage V)
- Fixed Speed: 129 kW @ 1500/1800 RPM
- Displacement: 6.7 liters
- Dimensions: 1088 x 717 x 789 mm
- Dry Weight: 600 kg
