FPTNEF N45

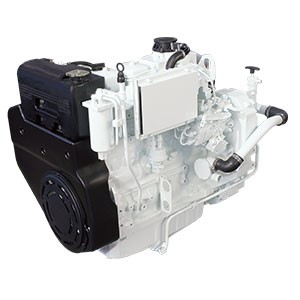

FPT NEF N45 100 Commercial Marine Engine
Part Number: FPT-NEF-N45-100-COM
Quote Required: This product requires a custom quote. Contact us for pricing and availability.
The FPT NEF N45 100 Commercial is a naturally aspirated 4-cylinder marine diesel engine with mechanical injection. Designed for commercial applications requiring reliable, continuous operation with low maintenance and operating costs.
Power:90 HP (67 kW)
Weight:450 kg
Contact us for pricing and availability
Detailed Specifications
Motor Specifications
- Max Power:
- 90 HP (67 kW)
- Cooling:
- Liquid
Physical Dimensions
- Length:
- 811 mm
- Width:
- 700 mm
- Height:
- 836 mm
- Net Weight:
- 450 kg
Key Features
- 4-cylinder in-line, 4-stroke naturally aspirated diesel
- 4.5L displacement
- Mechanical (M) injection system
- 2 valves per cylinder
- Commercial duty ratings (B, D)
- IMO II emission compliant
- Fixed speed generator ratings available
- Reliable mechanical simplicity
Performance Details
- B Rating: 66.5 kW (90 HP) @ 2800 RPM
- D Rating: 63 kW (85 HP) @ 2800 RPM
- Fixed Speed: 36 kW @ 1500 RPM (50Hz)
- Fixed Speed: 44 kW @ 1800 RPM (60Hz)
- Displacement: 4.5 liters
- Dimensions: 811 x 700 x 836 mm
- Dry Weight: 450 kg
