FPTCursor C90

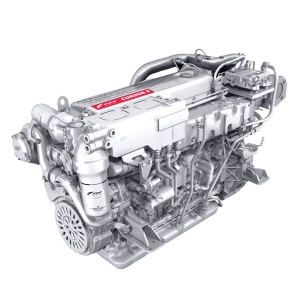

FPT Cursor C90 410 Marine Engine
Part Number: FPT-CURSOR-C90-410
Quote Required: This product requires a custom quote. Contact us for pricing and availability.
The FPT Cursor C90 410 is a turbo-aftercooled 6-cylinder marine diesel engine from the Cursor Series. Delivers up to 301 kW with multiple duty ratings for professional marine applications. Features electronic Common Rail injection for high innovation, easy maintenance, and extreme efficiency. Trusted by professionals of the sea for competitive operating costs.
Power:404 HP (301 kW)
Contact us for pricing and availability
Detailed Specifications
Motor Specifications
- Min Power:
- 295 HP (220 kW)
- Max Power:
- 404 HP (301 kW)
- Cooling:
- Heat Exchanger (Keel-Cooling Optional)
Key Features
- 6-cylinder, 4-stroke turbo-aftercooled diesel (6L TCA)
- 8.7L displacement
- 301 kW (404 HP) max @ 2000 RPM (C rating)
- Electronic Common Rail injection system
- Multiple duty ratings available
- Outstanding power output standards
- High compactness and reliability
- IMO MARPOL, EU-RCD, EU-IWV, USA-EPA compliant
- RINA Class homologated
Performance Details
- C Rating (Continuous): 301 kW (404 HP) @ 2000 RPM
- D Rating (Continuous): 279 kW (374 HP) @ 2000 RPM
- D Rating (Continuous): 220 kW (295 HP) @ 2000 RPM
- Displacement: 8.7 liters
- Cylinder Arrangement: 6L (inline)
- Air Feeding: TCA (Turbo Charged Aftercooled)
- Injection System: CR (Common Rail)
- Suitable for yachts up to 22m (72 ft)
